Description
Specifications
| Part Number: | SP397.333 |

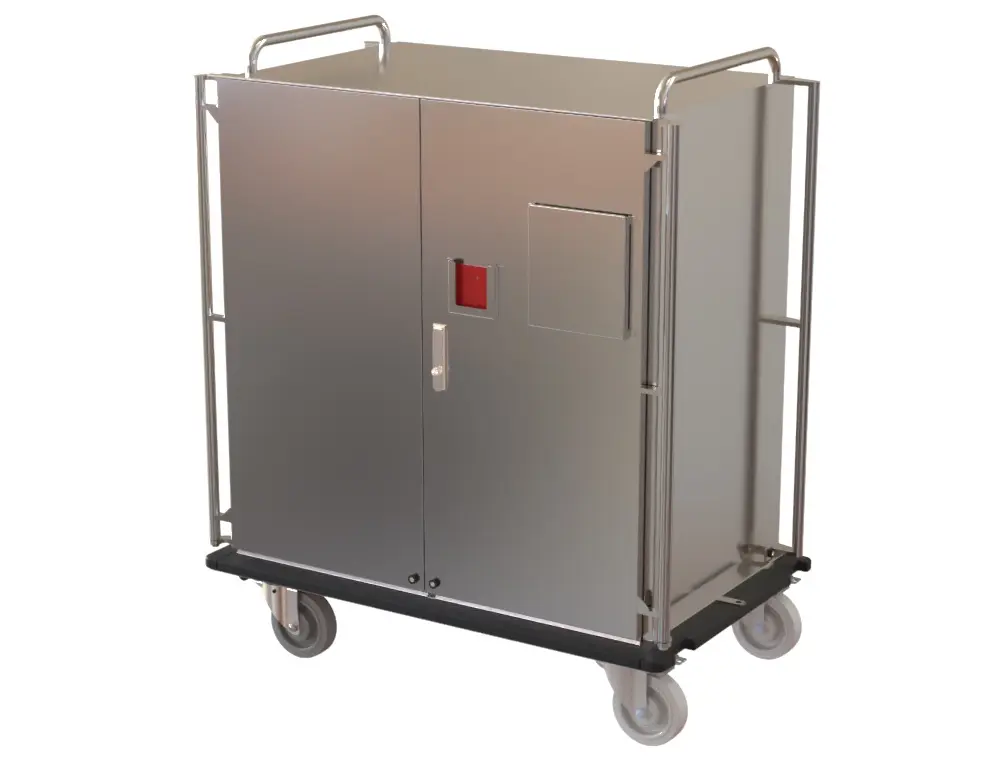

| Item: | Transport Trolley – For Trolley Wash System (9 STU) For Sterile Goods |
| External Dimensions: | 1165 x 725 x 1301 mm (45.9” x 28.5” x 51.2”) |
| Internal Dimensions: | 1010 x 620 x 1050 mm (39.8” x 24.4” x 41.3”) |
| Shelves: | 3 x mesh shelves (965 x 620 mm)
Top 2 shelves fit 2 x STU containers (300 x 600 x 250 mm each) Bottom shelf fits 3 x STU containers (300 x 600 x 300 mm each) Pull-out bottom shelf (approx. 300 mm) Removable and available with optional dividers Usable tray area per shelf: 949 x 604 mm Smooth linished shelf supports |
| Doors: | Full-height double doors open to 270°
Secured open with magnetic holders Silicone door seals – replaceable Tamper-proof eyelet for breakaway seal (Code: PS-100) Clean/dirty identifier slot A4 DIN document holder Rain cover with high-strength seal |
| Handles: | 4 x Vertical push handles integrated with door frame |
| Castors: | 4 x 160 mm stainless steel castors
2 x directional lock 2 x foot pedal brake Central foot brake system Bumper cut-out for easy brake pedal access |
| Bumpers: | 4-sided base bumper for full cart protection |
| Construction: | Fully welded #304 stainless steel Rated to 120°C – compatible with trolley washers |
| Options: | Tug tow linking attachment
Tug tow hitch bar Additional shelves, dividers, and shelf supports sold separately |
Custom Configuration Form:
Fill out our Custom Configuration Form to customise our case carts/transport trolleys to suit your unique needs.
Download and fill out the attached form and send it to sales@emeryindustries.com.au
